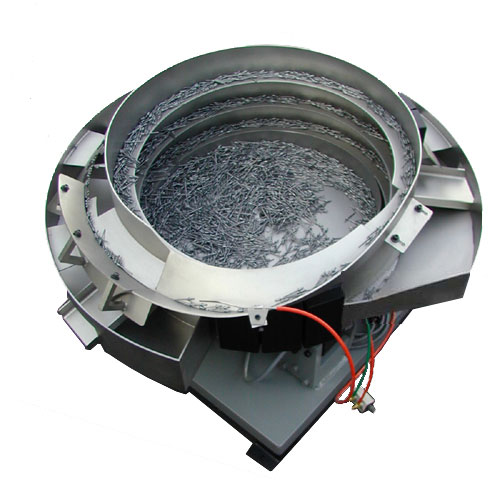

Vibratory Feeder: Rivet Sorter for Rivets, Screws and Nails by Size

Capable of Multiple Selections

The RIVET SORTER has proven to be a valuable machine to sort rivets, screws and nails by size, even from the scrap that might remain after processing. Five individual chutes provide for multiple selections. The fan area delivers high rates and a variety of cams and windows allow you to set up for virtually any combination. Even with low air consumption, the Sorter will deliver 300 ppm for most rivet styles up to ¼" diameter x 1" under the head and 1½" above the head. The selection tolerance is within .060".
